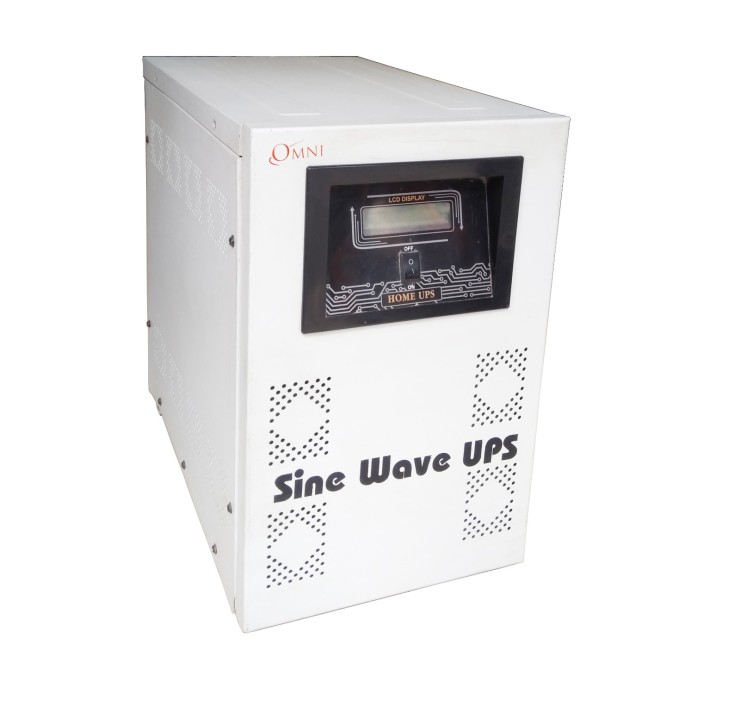

HOME UPS (Sine Wave)

Technical Specification:

Microcontroller based design with DSP technology.
Pure Sine Wave output.
SMPS based battery charger, charges battery form 140VAC onwards (no sound from transformer).
Fuzzy logic multi-stage battery charger.
Change over time less than 8 ms in UPS mode.
In the inverter mode Change over voltages are100VAC and 270VAC (±10V).
In the UPS mode Change over voltages are 180VAC and 270VAC (± 5V).
Line Synchronized change over.
Power factor: 0.8
Input Frequency : 47-52 Hz
Output Voltage: 230 VAC ± 5V
Capacity: 850VA/12V, 1500VA/24V,3.5KVA/48V,5KVA/72V
Protection:
a. over load
b. short circuit
c. low battery

DISPLAY INDICATIONS
