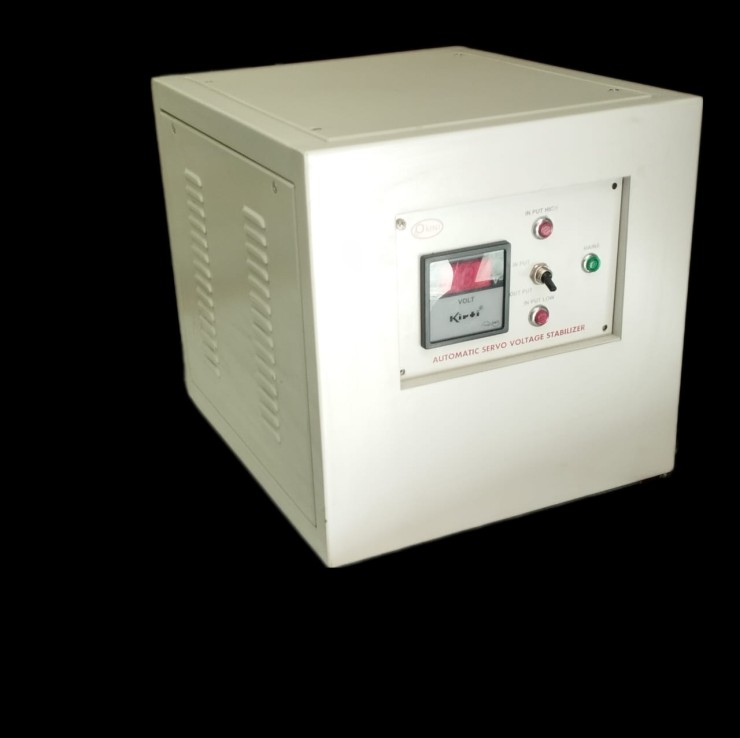

Why you need a Servo Voltage Stabilizer or Automatic Voltage stabilizer ?
We have seen that the in many places voltage at consumer end is never stable in spite of effort of electricity authority. As a result of these never ending and continuous voltage fluctuations there is frequent tripping and sudden breakdown of the systems and allied machines/ precious equipment's resulting into uncontrollable losses and low production. Frequent Input Voltage Variations seriously affects the performance of these costly and sophisticated machines and thereby it’s important to manage the input voltage variation effectively and provide a stable constant voltage at output by using superior quality Servo Voltage Stabilizers which are available in 1 or 3 Phase.
Field of Application :
- Air Conditioning Plants
- Medical Equipment
- Offset Printing Machine
- C.N.C. Machines
- Escalators & Elevators
- Mall & Commercial Complex
- Residences & Offices
- Telecommunication System
- Information Technology
- Call Centers
- Cement Plants
- Domestics load
- Hotels
- Textiles Industries
- Pharmaceutical Industries
- R & D Institutions
- Metrological Department
- Induction Heating Plant
Technical Specification:
|
CAPACITY
|
3 KVA TO 15 KVA (SINGLE PHASE)
|
|
6 KVA TO 200 KVA (THREE PHASE)
|
|
INPUT
VOLTAGE RANGE
|
150 V - 270 V, 170 V TO 270 V (SINGLE
PHASE)
|
|
260 V TO 470 V, 300 V TO 470 V (THREE
PHASE)
|
|
(OTHER RANGES AVAILABLE ON SPECIAL
ORDER)
|
|
OUTPUT VOLTAGE
|
230 V / 240 V SINGLE PHASE
(ADJUSTABLE)
|
|
400 V TO 415 V THREE PHASE
(ADJUSTABLE)
|
|
REGULATION
|
+ 2% OR BETTER
|
|
SUPPLY
FREQUENCY
|
47 MHz - 53 Hz
|
|
EFFICIENCY
|
> 98.6%
|
|
EFFECT
OF LOAD POWER FACTOR
|
NIL
|
|
WAVE
FORM DISTORTION
|
NIL
|
|
DUTY
CYCLE
|
100% CONTINUOUS
|
|
RESPONSE
TIME
|
LESS THAN 10 MS
|
|
MODE OF SYSTEM
|
AUTOMATIC/MANUAL
|
|
SERVO MOTOR DRIVE
|
RUGGED AS SYNCHRONOUS MOTOR
|
|
MANUAL BYPASS
|
OPTIONAL AT EXTRA COST
|
|
OVER/UNDER VOLTAGE PROTECTION
|
OPTIONAL AT EXTRA COST
|
|
COOLING
|
AIR COOL/OIL COOL
|
|
CABLE
TERMINATION BOX
|
INPUT/OUTPUT CONNECTIONS
|
|
AMBIENT
TEMPERATURE
|
-100 C
TO 500 C
|
|
RELATIVE HUMIDITY
|
UP TO 95%
|
