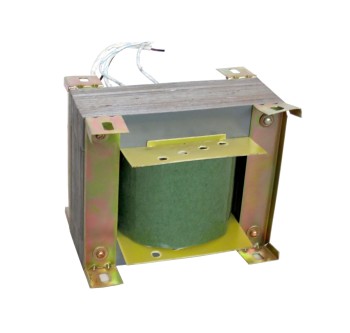

Output of An isolation transformer is totally isolated from input. Any fault, leakage, Electrical noise, voltage transients, spikes etc. in the input side because of other loads connected in parallel are not reflected on the output, thus avoiding damage to sensitive electrical equipment.
There is common problem at some sites that power neutral is missing/weak or not available. At these sites Alternating current does not starts properly as voltage does not develop between phase and weak or missing neutral. Our Isolation Transformers are designed to get rid of these problems. In the Isolation Transformers a new neutral is generated, which is healthy, perfect and has no connection with the neutral of electricity supply and hence unbalancing does not occur resulting proper working of precious machines and equipments.
Isolation Transformer are available as open type as well as metal enclosure.
SPECIFICATIONS:
- Input Voltage : as required
- Acceptable input voltage : +/-10% ac
- Mode of operation : 1:1 or Step up or Step down
- Common mode rejection : Transients, spikes, surges
- Coupling capacitance : less than 0.005 pf
- Insulation Resistance : More than 1000 MOHMS
- Dielectric Strength : 2500V AC for 2 minutes
- Load regulation : 3.5%
- Line leakage current : Less than 20 microamps
- Capacity : 0.5KVA to 10KVA
